Husqvarna 135 fuel pipe

[Sproglad]

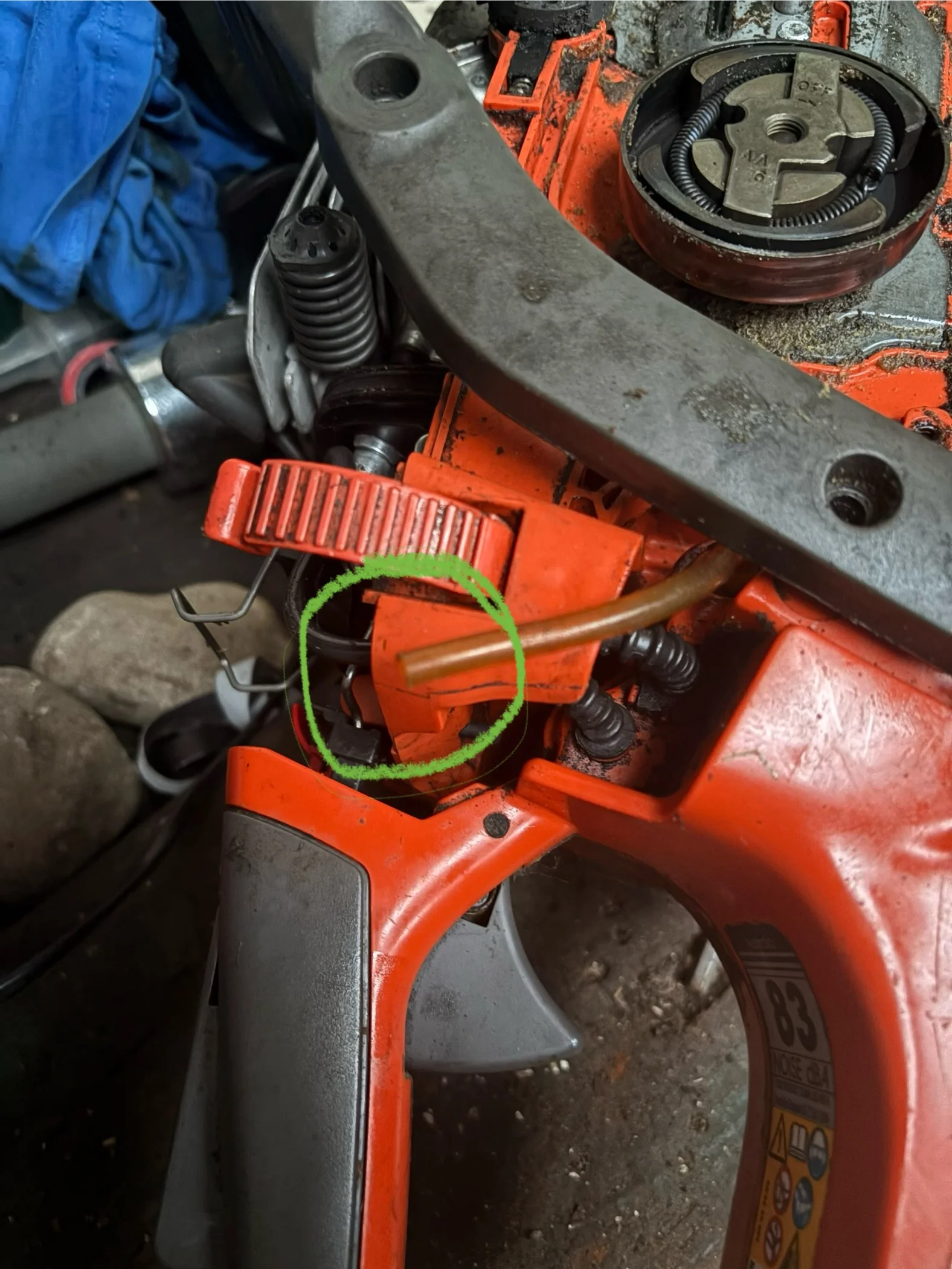

Hey folks. I have a husqvarna 135 2011. I stripped it down to clean the carbs but I can’t see where one of the fuel pipes heads to? One end seems to come from the fuel tank itself, but I can’t see anywhere for the other free end to go? The primer is not filling, it’s just sucking air and making a wheezing sound. Any advice on where it goes?



[SawdustKing]

Okay, so it sounds like the fuel return line might be messed up. You've got one line running from the gas tank to the carburetor, another from the carb to the primer bulb, and then a return line that goes from the primer back to the tank. Give those lines a look, make sure they're going where they need to, and that all the bits are tight and have no cracks



[Sproglad]

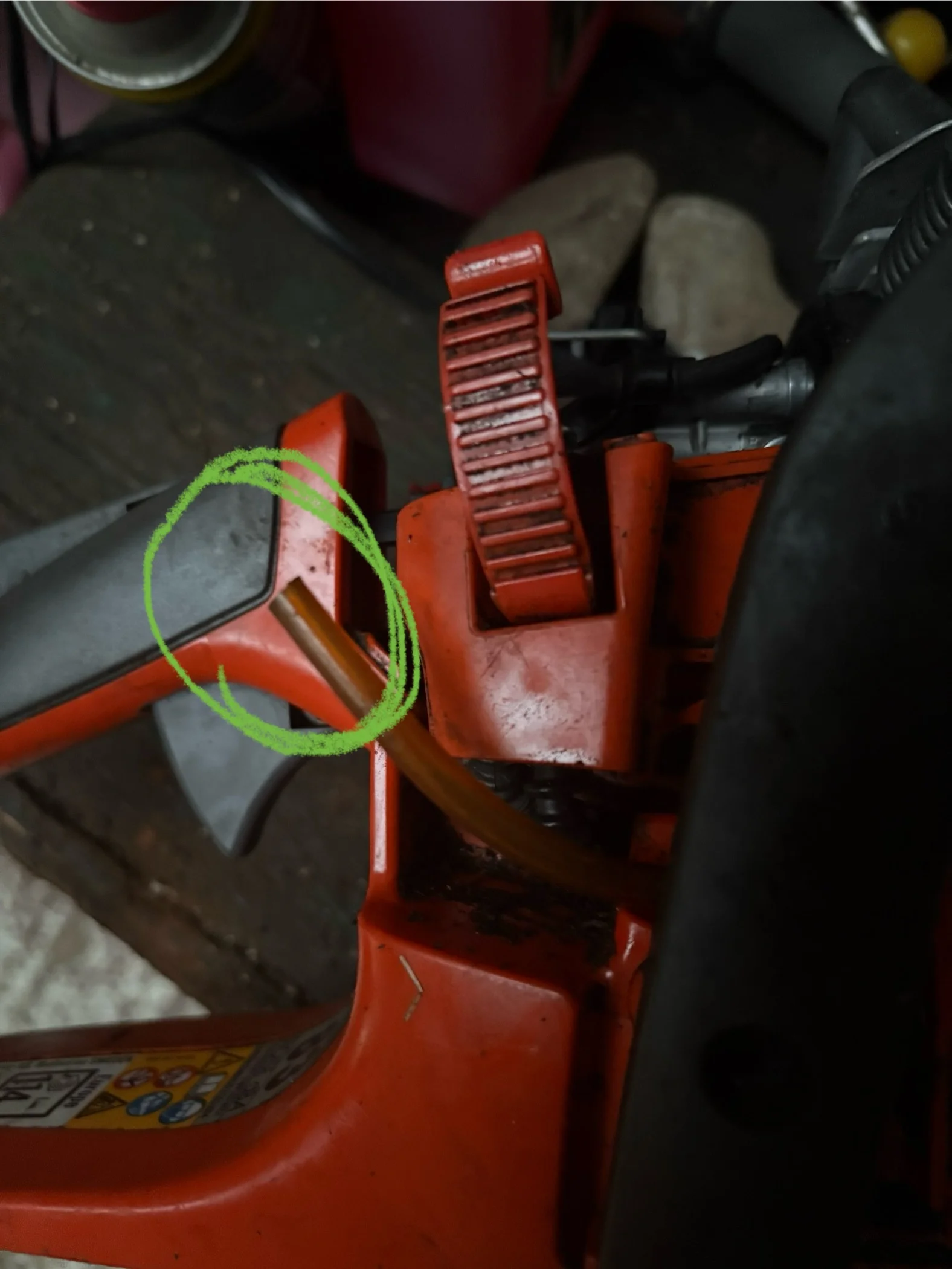

Thanks for reply. Yep I checked it out and for sure it's supposed to create a loop, the trouble is I can't see where the free end is supposed to go. I can't see any port or valve free for it to fix onto.



[leecopland]

The IPL should shoe where they go or at least the layout.
